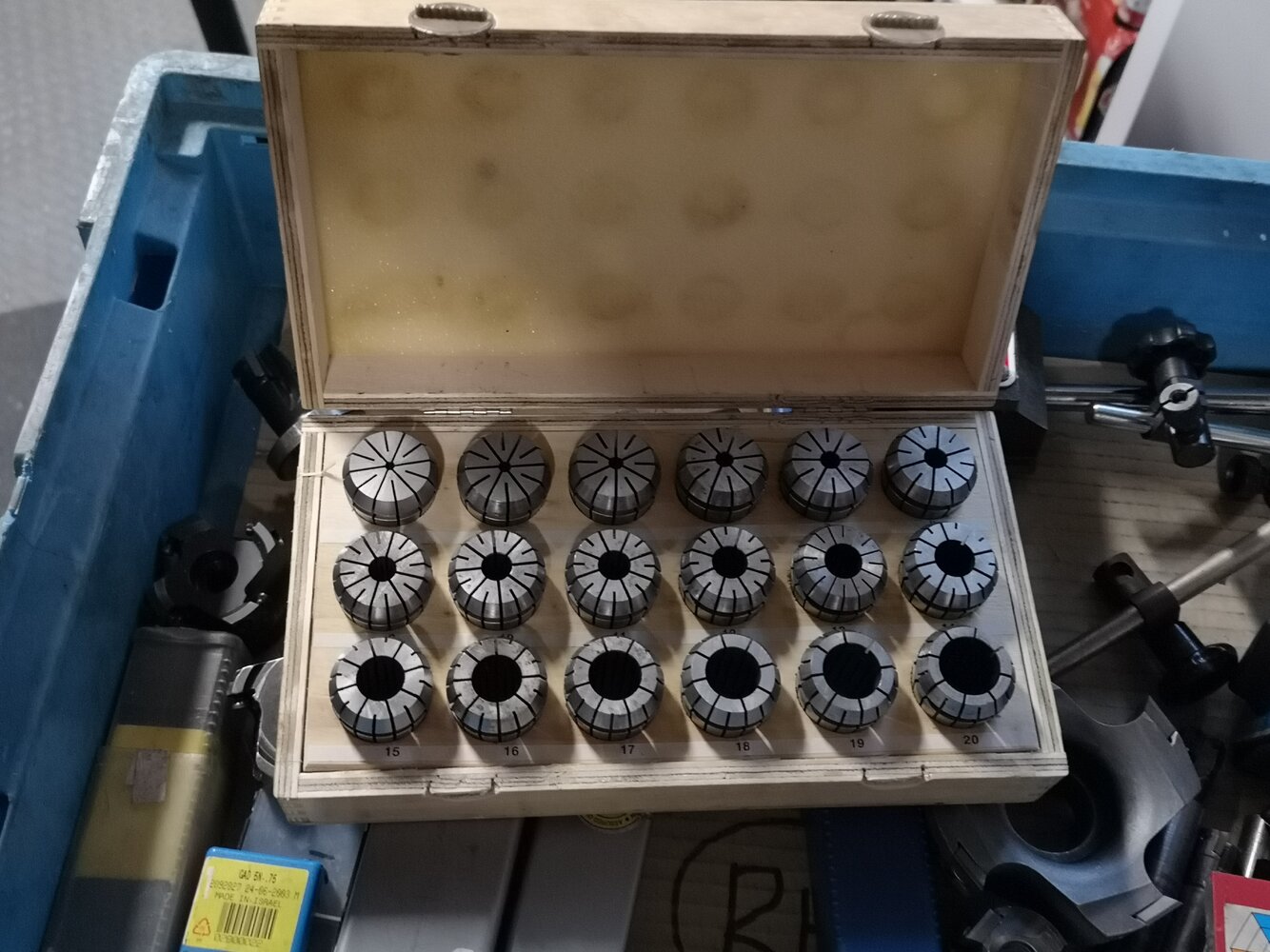

Nice looking collet set. I have been tempted to buy some collets for my inherited mini lathe or the mill but I am very wary about how accurate they would be fitted on a cheaper made lathe. I have heard a lot of people struggle with inaccurate collets.



[andy63]

I think I might turn up a small chuck to mount straight onto the Myford spindle so it will have a through hole and minimal overhang. Got a short piece of 2" dia EN8 that will oil harden ok, watch this space !

if I remember correctly when I got a set of er32 collets I got one holder with a mt3 taper for the mill and then just machined up a holder for the lathe.. the closing rings can be bought separately so its just the holder you have to make..
Andy



[andy63]

The holder on the left in the photo was machined to fit the myford lathe spindle and take the er32 collets..
As i said above I bought the closing ring as machining that wasn't just so straight fwd..
Andy



[John Barrett]

Not everyone on here will get this...



[bigwood]

I remember the very last of those at Newton Heath sheds Manchester. There were a few tenders there that were converted to weed spraying.
When they lifted the tracks on the line behind my grandparents house they used a crane towed by a Black Five . The wagons were behind a 7000 class.
In the late sixties I managed to visit Barry Island. Even then it was sad to see so meany locos being hacked to death.

^{_{Subscribers  do not see these advertisements}}



[Ditcha]

If anybody is short of any tooling I have a load for sale all quality brands, finished machining now so have a wide range of gear, measuring, bore gauges mics etc just a few pics of stuff for sale just pm me and I will let you know if I have it.
Was intending to put it on ebay but never getting round to it.



[John Barrett]

If anybody is short of any tooling I have a load for sale all quality brands, finished machining now so have a wide range of gear, measuring, bore gauges mics etc just a few pics of stuff for sale just pm me and I will let you know if I have it.
Was intending to put it on ebay but never getting round to it.

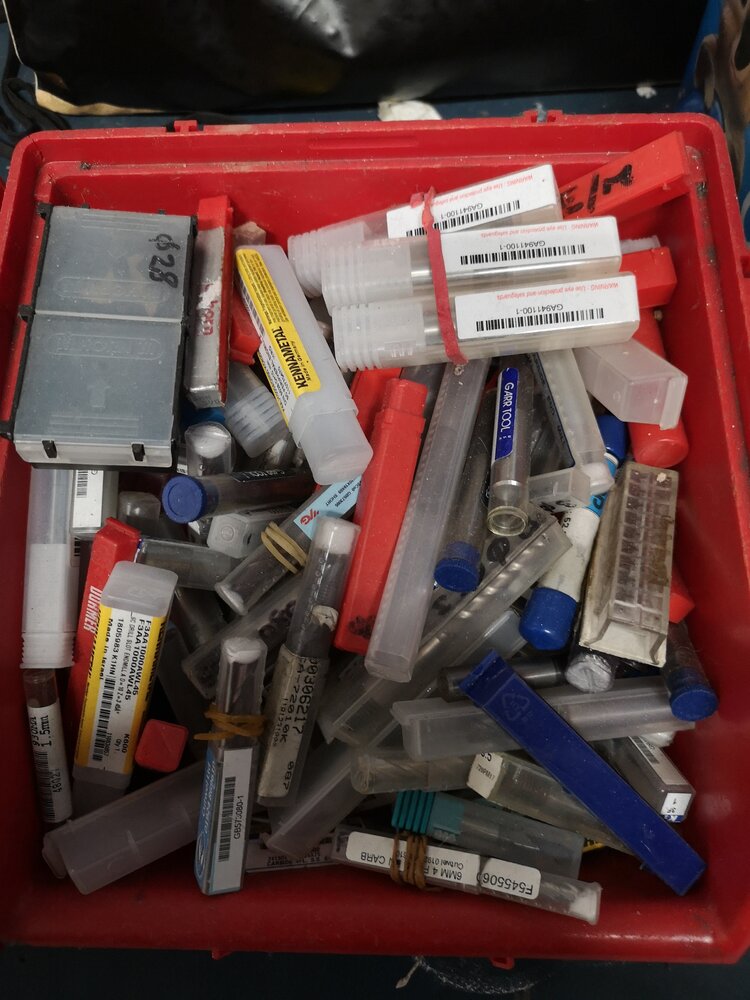

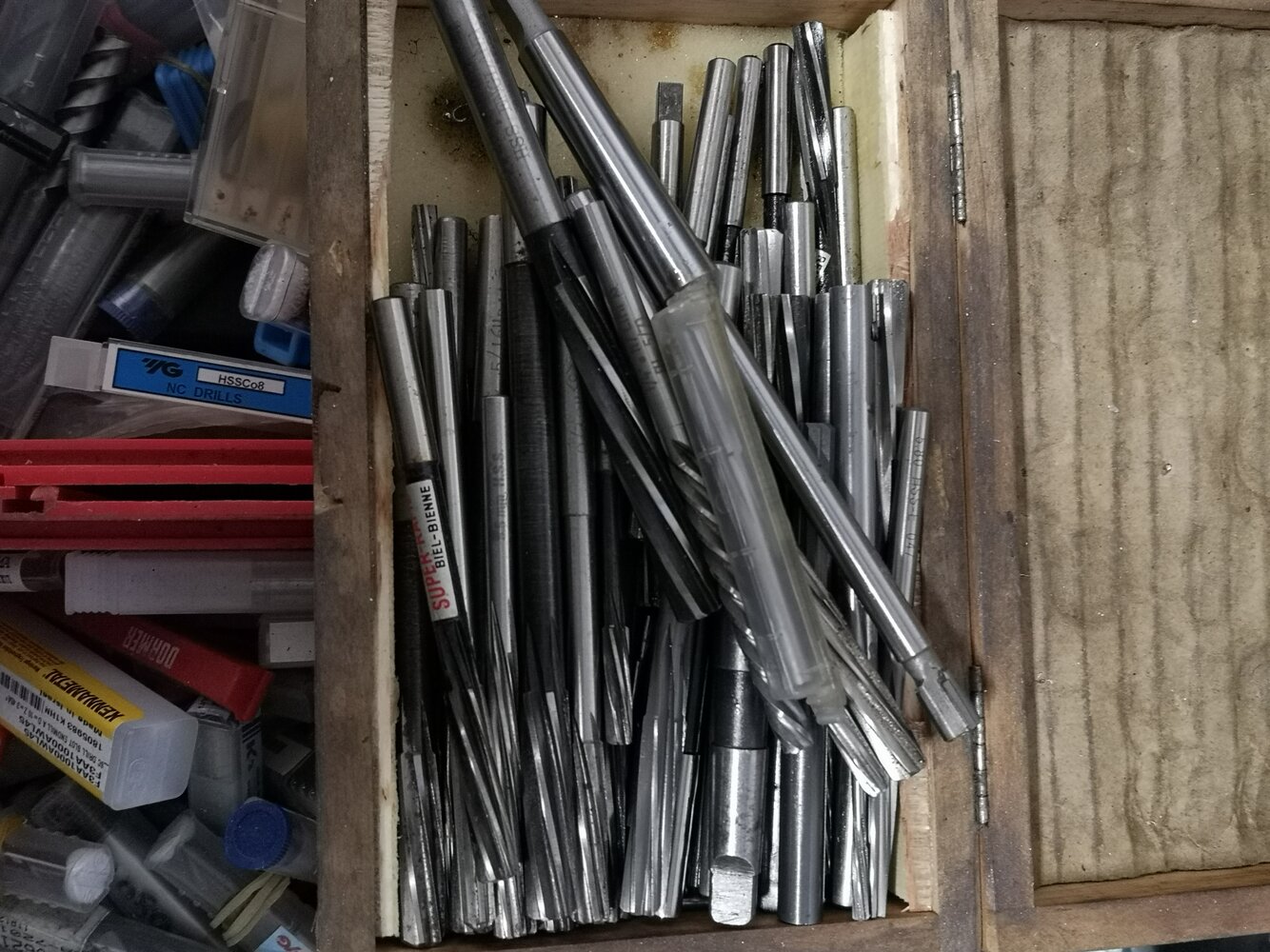

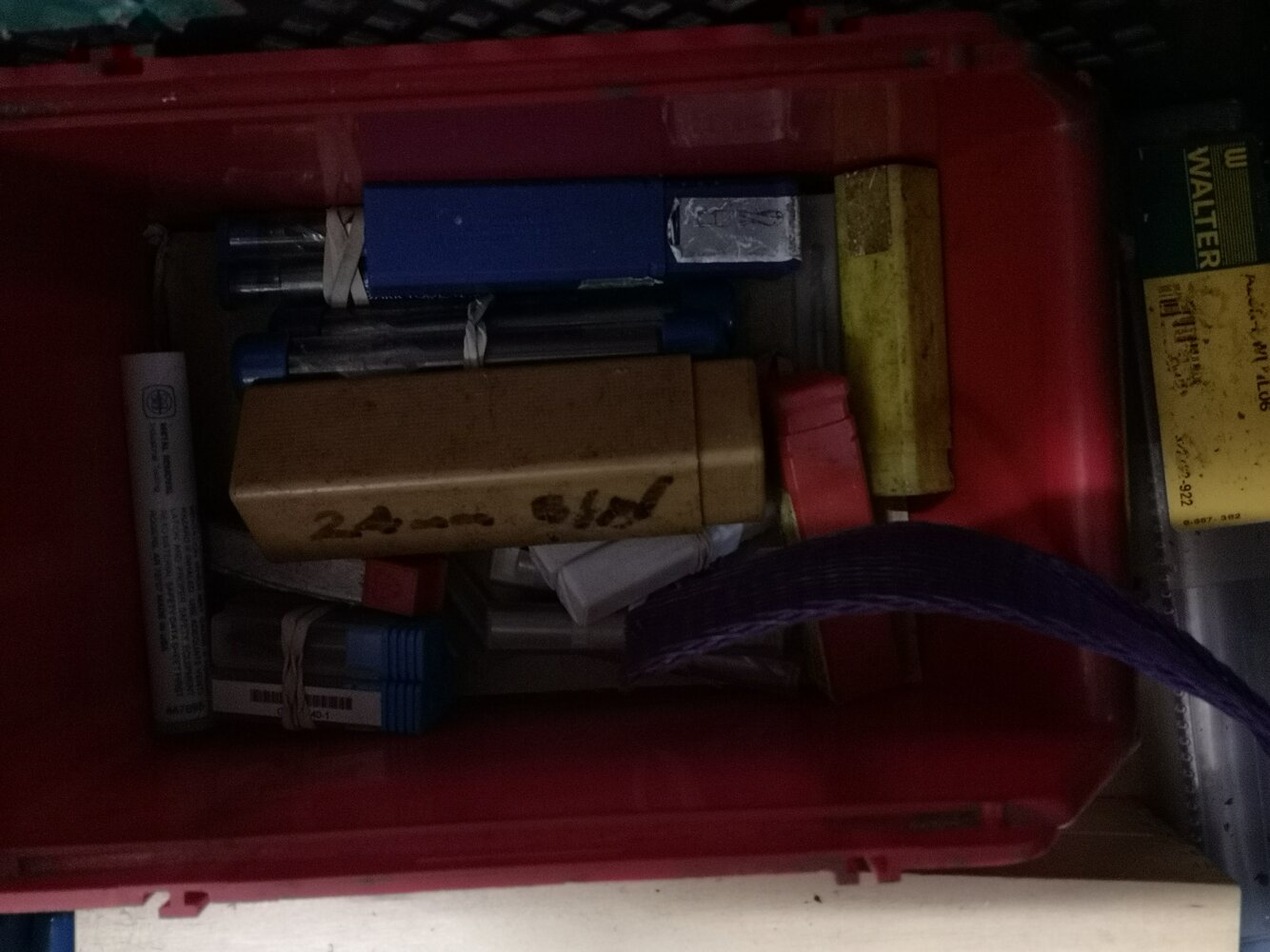

View attachment 397662View attachment 397663View attachment 397665View attachment 397666View attachment 397667View attachment 397668View attachment 397669View attachment 397671View attachment 397672View attachment 397673View attachment 397674View attachment 397675View attachment 397676View attachment 397677

What a fantastic collection. I'd love a rummage, but unfortunately I couldn't be further away from you!
This sales/wanted site is well used by us model engineers and is free.
Broken Link Removed



[Ditcha]

What a fantastic collection. I'd love a rummage, but unfortunately I couldn't be further away from you!
This sales/wanted site is well used by us model engineers and is free.
Broken Link Removed

Thanks for that John I will take a look



[PeteH]

We had a Weir pump in the boilerhouse at work, must have stood 8 feet tall !

"Blast from the Past" time!. We had them on the old triple expansion steam ships, and Early 4 cylinder Doxford Ships. ("Hybrid", vessels 2 stroke oposed piston Diesel Engine main propulsion with 2 "Scotch" Boilers). One of which could be steamed by diverting the Exhaust Gas` through the furnace`s. The Weir`s where used as G-P and feed pumps, and needed a lot of "attention" to get to work properly but once set up would run as long as they had steam! and a regular squirt of oil. We used to machine the "bucket" rings in the ships engine room workshop from "Ebonite".



[bigwood]

After a bit of thinking and checking prices I have ordered the tubes and other materials to carry on with my boiler. I was tempted to collect the bits myself to save postage and give the van a run but it was cheaper to have them sent via a courier.
It must be my day because I found an empty gas bottle for a tenner in Hull. Its a bigger bottle than I need but it will save a bit of money not having to buy the bottle outright. I will get it swapped for the same size, 6 kg, as the ones in the van to use as a spare as well as in the workshop.
A few more bits to get and hopefully I can get this boiler built at last.
