Doesn't that also happen if your starter battery and your Pb leisure batteries are also fully charged.?
Ecotree Lithium Install
- Thread starter Mrjenben
- Start date
It does and doesn’t matter it’s designed for Pb, so no issues there.
I think -but not totally sure -its the lower resistance in the Lithiums that could be the issue.
jongood No problem - I dont think there is a single right answer
It won’t be able to pump 50 amps into them if they're full!
I think you’re right, the issue being raised is how long it will try to do it, and also what will be the residual current flow due to the different charge/ resistance profile of lithium.
Final update for now. This is a long and possibly too technical one - sorry!
This has been an interesting learning experience. What’s become clear on various discussions is that it’s very hard to get the perfect setup. And that Im definitely a novice in this
From what I’ve researched, and been told, current lead acid charge systems are not necessarily the best way to charge lithium. However this same info has not entirely convinced me that the “lithium profiles” on many new chargers are much better sometimes. Also none of them provide an easy way to leave the batteries at 80% for extended periods when not in use.
It seems if you want to have the absolute max battery performance and life then you still need to implement your own programmable BMS in conjunction with fully controlable chargers. While on hookup you will also need someway to isolate the battery from the normal mains charger/power supply to avoid a damaging float status, whilst still being able to power the van electrics from the charger.
Luckily, we dont need perfection. Even a flawed install should give us more than what we need. So I want to stick to a simple cost effective solution to give reasonable performance and life. I’m happy as long as I meet the needs of the 6 year warranty.
So, to do that, I think that when using a battery like the Ecotree then all of the charge sources need to provide this charge profile:-
1. Constant Current charge (“Bulk“ in old money) - limited to a max of 0.5c for the Ecotree battery so 55amps.
2. Constant Voltage (”Absorption”) As the resistance increases the maximum voltage should be 14.2 volts (although up to 14.6 is allowed). With this design of BMS this voltage should be held for a minimum of 20-60 mins to enable cell balancing to take place.
3. Float. The batteries naturally rest at 13.2-13.3 volts. A float isn’t needed for the battery, but if you want to power your van on hookup then a float of 13.6ish is needed to make it use the charger as a power supply rather than discharging the battery.
Right so I’ve checked out my install against this. Using actual readings at the battery -
1. Mains Charger - The EBL29 on lead acid setting charges the discharged Lithium at a constant 15amps until the voltage reaches 14.3. It then holds this for 4 hours even though the current drops below 0.1a almost immediately. It then switches to a 13.6 float.
So not entirely bad. A shorter absorption would be better but looking at any lithium charger, they normally have a 2 hour absorption anyway, so not a great improvment.
2. Solar - Pretty much the same. 4 hrs at 14.3 then float at 13.4. Ok for me.
3. Alternator - My alternator feeds a max of 26a at 13.7 v into a discharged battery, falling to less than 0.1a when full.
I know this will vary depending on the state of charge of both the van and lithium battery. And I know a B2B could increase this to 14.2v, increase the charge rate and probably provide a more consistent float after its 2 hr absorption. But we normally stop for a rest every 3 hrs or so, and faster charging isn’t really a need for us, so not a big issue.
So it seems a drop in replacement looks good so far. I will leave the battery off-charge when the vans not being used - and check it weekly to see if it needs a top up. But I can’t be bothered to try to discharge it to 80% every time. Also Im going to see how the alternator charging goes with some real experience and maybe upgrade to a B2B in future.
Hope this is useful
This has been an interesting learning experience. What’s become clear on various discussions is that it’s very hard to get the perfect setup. And that Im definitely a novice in this
From what I’ve researched, and been told, current lead acid charge systems are not necessarily the best way to charge lithium. However this same info has not entirely convinced me that the “lithium profiles” on many new chargers are much better sometimes. Also none of them provide an easy way to leave the batteries at 80% for extended periods when not in use.
It seems if you want to have the absolute max battery performance and life then you still need to implement your own programmable BMS in conjunction with fully controlable chargers. While on hookup you will also need someway to isolate the battery from the normal mains charger/power supply to avoid a damaging float status, whilst still being able to power the van electrics from the charger.
Luckily, we dont need perfection. Even a flawed install should give us more than what we need. So I want to stick to a simple cost effective solution to give reasonable performance and life. I’m happy as long as I meet the needs of the 6 year warranty.
So, to do that, I think that when using a battery like the Ecotree then all of the charge sources need to provide this charge profile:-
1. Constant Current charge (“Bulk“ in old money) - limited to a max of 0.5c for the Ecotree battery so 55amps.
2. Constant Voltage (”Absorption”) As the resistance increases the maximum voltage should be 14.2 volts (although up to 14.6 is allowed). With this design of BMS this voltage should be held for a minimum of 20-60 mins to enable cell balancing to take place.
3. Float. The batteries naturally rest at 13.2-13.3 volts. A float isn’t needed for the battery, but if you want to power your van on hookup then a float of 13.6ish is needed to make it use the charger as a power supply rather than discharging the battery.
Right so I’ve checked out my install against this. Using actual readings at the battery -
1. Mains Charger - The EBL29 on lead acid setting charges the discharged Lithium at a constant 15amps until the voltage reaches 14.3. It then holds this for 4 hours even though the current drops below 0.1a almost immediately. It then switches to a 13.6 float.
So not entirely bad. A shorter absorption would be better but looking at any lithium charger, they normally have a 2 hour absorption anyway, so not a great improvment.
2. Solar - Pretty much the same. 4 hrs at 14.3 then float at 13.4. Ok for me.
3. Alternator - My alternator feeds a max of 26a at 13.7 v into a discharged battery, falling to less than 0.1a when full.
I know this will vary depending on the state of charge of both the van and lithium battery. And I know a B2B could increase this to 14.2v, increase the charge rate and probably provide a more consistent float after its 2 hr absorption. But we normally stop for a rest every 3 hrs or so, and faster charging isn’t really a need for us, so not a big issue.
So it seems a drop in replacement looks good so far. I will leave the battery off-charge when the vans not being used - and check it weekly to see if it needs a top up. But I can’t be bothered to try to discharge it to 80% every time. Also Im going to see how the alternator charging goes with some real experience and maybe upgrade to a B2B in future.
Hope this is useful
Subscribers do not see these advertisements
Bobby-gg
LIFE MEMBER
Well, I've just installed my ecotree battery and Votronic B2B today so will be doing my installation post tonight or tomorrow
I do this using the Victron IP22 charger which you can configure to act as a power supply when on hookup. This means that the battery isn’t being charged. I hope this is what you’re talking about.
I’ve found your thread very interesting to follow as I’m learning a lot albeit from far lower technical level than you. I hope it all goes well.
Thanks for the feedback
Im not sure the IP22 will disconnect the battery automatically when in power supply mode? You will still need to isolate it if you don’t want it to discharge as the power supply mode is only 12.8v.
I don’t think you need to worry though - if you use the IP22 lithium profile then the float is low enough to not cause any problems while you are using the van, and if it’s in long term storage you can always disconnect the battery anyway.

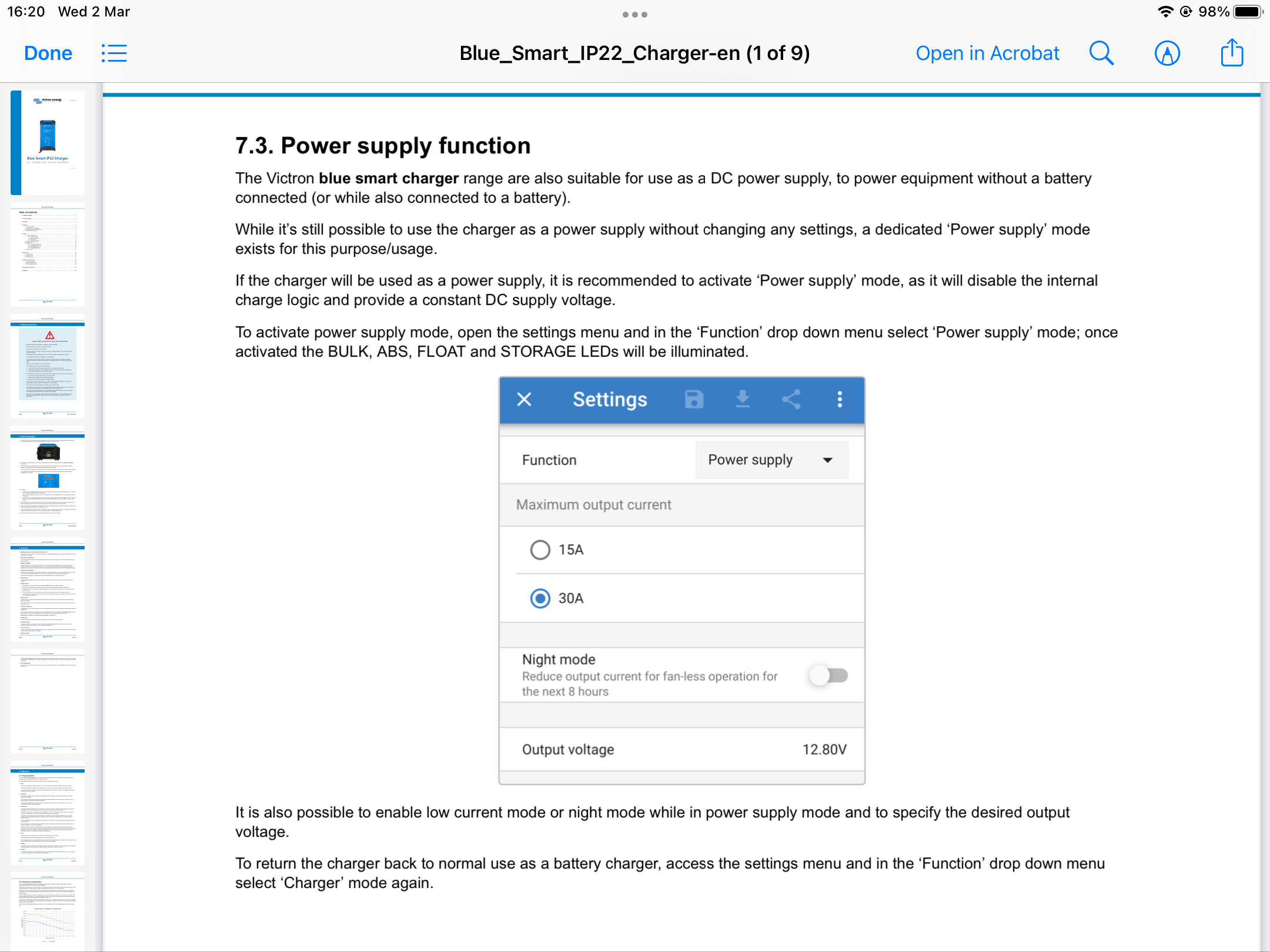

This is a photo from the manual.Thanks for the feedback
Im not sure the IP22 will disconnect the battery automatically when in power supply mode? You will still need to isolate it if you don’t want it to discharge as the power supply mode is only 12.8v.
I don’t think you need to worry though - if you use the IP22 lithium profile then the float is low enough to not cause any problems while you are using the van, and if it’s in long term storage you can always disconnect the battery anyway.
Edit: it says that in power supply mode, it will disable the internal charge logic. Not sure if this has the same effect as disconnecting the battery.
I took that to mean it will just output 12.8v rather than go through a normal charge cycle?
