Ecotree Lithium Install

[Mrjenben]

Depends, theoretically can max out the bms. How much flow? Depends on wire resistance path. If resistance path is low, current will flow until bms or alternator maxed out. If wire will limit based on output voltage, ( no regen braking), a lower current will make it to the battery. What you don’t have, is a charger to call it quits when full. The alternator does not know when it’s full, it will trickle if voltage is held high.
LiFePo4 can fully charge even at 13,6v, it’s just a longer process. The 14,4-14-6v it’s just spending up the bulk rate pushing more amps in a shorter time span.

Yep I get the theory. My worry is the max charge current as my van has reasonably good and short cable runs:-(

Regarding the B2B recognising a full battery, surely the charge profile means they will go into absorption mode and will hold the battery at 14.2 for several hours anyway (Victron state 2 hrs for their B2B on lithium) ? So for most reasonable journeys it’s never going to do anything the alternator wouldn’t do on its own?



[Mrjenben]

You have a Hymer Exsis, the cables on the charge circuit are 16mm sq and it is a very short cable run between the starter and the leisure battery without a B2B you will easily exceed 55 amps, I've seen 45 amps into Gel batteries on an Exsis, the Lithium has a much lower internal resistance so is cabable of drawing much more current.

You also stand a high chance of burning out the wiring & relay in the EBL.

Lenny

Thats really useful info thanks. I already appreciated the excellence (!) of Hymers build quality but hadn’t got the real world experience of what charge rate that would result in.

You‘ve got me thinking now. Do I cave in and fit a B2B now or do I give it a go and stand by with the fire extinguisher



[Raul]

You could try and let us now if you like. Take note what Lenny posted as well. I’m not familiar with your van in particular, but Lenny knows.



[Mrjenben]

If it helps, I have the same model Motorhome and there is a thread in my signature about how I installed 2 Ecotree lithium.

I couldn’t be happier with them.

If you do decide to go a B2B, it was a very simple 30 minute job to put the Votronic 30amp one in.

Just don’t buy jump leads for cable.

Thanks. I saw your thread a while ago + it’s was very helpful. If I do cave in and go for a B2B I’ll probably get a higher capacity one and wire it in direct to the batteries rather than via the EBL though. Might as well make the most of it



[Raul]

I give you a clue to: I have a 30A dc-dc converter set as B2B with output at 13,55v dead. When the battery is partially discharged, 60-80% ish, with 4m run 10mm2, it pushes 28-29 amps into the leisure battery. The lithium is capable of absorbing good currents even on a small voltage difference, even 0,05v.

^{_{Subscribers  do not see these advertisements}}



[Mrjenben]

Install completed for now I’ve also switched the solar regulator to AGM/gel setting as advised by Ecotree.

Just need to do some testing now and see whether I need to open the safe and release some more funds for a B2B!

BTW Thanks to Lenny HB and Raul for their info. It’s made me do some more digging and realise it’s not as clear cut as I hoped!



[Jimbohorlicks]

Very nice and tidy and looking good so far.
Can't wait untill I recieve mine and install. All comments taken into account but the real truth will come out in the running of the batteries especially for a week off grid. Your install is also close to your heating conduit so should keep the battery in a warmer environment during colder weather.



[Mrjenben]

Been out to do some testing again. EBL charging fine and no issues with starter or hab batteries.

Also tried the engine alternator charger to get some comparison for when I put the B2B in tomorrow. It is a standard Hymer setup.

Initially chucked out 32 amps which then settled to 21 amps into the battery a few seconds later. Not bad for a standard setup. However, I then put the fridge on and was surprised to see it drop to 17 amps. This was consistent on idle or holding steady at 2500rpm.

Even with a 30 amp B2B you can nearly double the charge going in. Will be interesting to see the results once the B2B is wired in tomorrow.

Googlebot - just been going back over your thread and realised you’d already tried out the lithiums without a B2B and it worked ok! Fantastic info. Looks like I might be ok after all

Van currently sat with every 12v load I can find on. Might take a while to get to a low enough level to try out the alternator. Fire extinguisher at hand just in case



[Jimbohorlicks]

You just need to try it in sunshine now ,off your solar.



[Googlebot]

Googlebot - just been going back over your thread and realised you’d already tried out the lithiums without a B2B and it worked ok! Fantastic info. Looks like I might be ok after all

Van currently sat with every 12v load I can find on. Might take a while to get to a low enough level to try out the alternator. Fire extinguisher at hand just in case

I did try it briefly but it was literally, turn it on and see what happened, then turn it off.

I would make sure the shunt is fitted first so you can keep an eye on things.

^{_{Subscribers  do not see these advertisements}}



[Mrjenben]

Time to start playing

For this first trial the battery has been discharged to 80% (that took a while!)

The Smartshunt settings have been updated to the Ecotree advised values

So engine on, fire extinguisher handy..

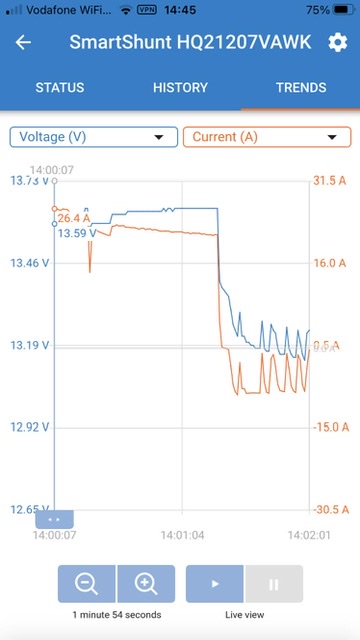

Maximum charge current of 26.4 amps. No smoke. Phew!
