Adam b The details about the converters connections that you have found are shown in the Motorhome manuals section (page 2 ) of Resources found in the menu of this site, it includes the socket wiring colors which should help to identify the correct relay . (pins 2 and 13 )
The connections into the EC400 are at plug P15 on the ECU
The connections into the EC400 are at plug P15 on the ECU
Last edited:
Minxy
LIFE MEMBER
- Aug 22, 2007
- 34,314
- 73,194
- Funster No
- 149
- MH
- Carthago Compactline
- Exp
- Since 1996, had Elddis/Swift/Rapido/Rimor/Chausson MHs. Autocruise/Globecar PVCs/Compactline i-138
Same here. I'm sure that was mentioned not that long ago.
The fridge control board and the step are often on a 'permanent live' circuit that doesn't go off when the habitation 12V power switch is off on the display panel. They may even be on the same fuse. They also stay on when Brit MHs cut off all the habitation circuits when the engine starts.
You want the fridge control board to stay on so that the fridge 12V will work while driving. You want the step to stay powered so that it can be retracted when the engine starts.
However in this case the 'leisure battery not charging while driving' points to an 'engine running' signal problem. Also the OP says the step retracts with the pushbutton (so it is still powered OK), but doesn't retract automatically.
I put a spell on your van since you sneaked off early and we missed saying cheerio
Hope you get it fixed, was nice to meet you both.
Hope you get it fixed, was nice to meet you both.Subscribers do not see these advertisements
There will be a separate Sargent EM40 or EM50 interface unit in addition to the EC400. This interfaces between the vehicle electrics and the hab electrics. It contains fuses and relays and a D+ signal path and will control the step auto-retract, fridge (on whist driving) and also provide a fused connection between the vehicle and hab batteries.
In my van (Autotrail) the EM40 is located in the floor behind the drivers seat. I suspect you may have an EM50 - Not sure where it will be located. Check cupboards, lockers, etc.
www.apuljackelectronics.co.uk
In my van (Autotrail) the EM40 is located in the floor behind the drivers seat. I suspect you may have an EM50 - Not sure where it will be located. Check cupboards, lockers, etc.
Sargent EM50 Control Module | Apuljack Electronics
The EM50 is the unit that acts as the vehicle interface for Sargent 300 and 400 series systems. It also contains the step functionality and control of the awni
OP
OP
Adam b
Free Member
I will have a look tomorrow. ThanksThere will be a separate Sargent EM40 or EM50 interface unit in addition to the EC400. This interfaces between the vehicle electrics and the hab electrics. It contains fuses and relays and a D+ signal path and will control the step auto-retract, fridge (on whist driving) and also provide a fused connection between the vehicle and hab batteries.
In my van (Autotrail) the EM40 is located in the floor behind the drivers seat. I suspect you may have an EM50 - Not sure where it will be located. Check cupboards, lockers, etc.
Sargent EM50 Control Module | Apuljack Electronics
The EM50 is the unit that acts as the vehicle interface for Sargent 300 and 400 series systems. It also contains the step functionality and control of the awni
OP
OP
Adam b
Free Member
Sorry Sandra we thought you were still in bedI put a spell on your van since you sneaked off early and we missed saying cheerio
OP
OP
Adam b
Free Member
I searched the van for the EM50/40 & I don’t have one, I called Sargent they said not all vans have them ,There will be a separate Sargent EM40 or EM50 interface unit in addition to the EC400. This interfaces between the vehicle electrics and the hab electrics. It contains fuses and relays and a D+ signal path and will control the step auto-retract, fridge (on whist driving) and also provide a fused connection between the vehicle and hab batteries.
In my van (Autotrail) the EM40 is located in the floor behind the drivers seat. I suspect you may have an EM50 - Not sure where it will be located. Check cupboards, lockers, etc.
Sargent EM50 Control Module | Apuljack Electronics
The EM50 is the unit that acts as the vehicle interface for Sargent 300 and 400 series systems. It also contains the step functionality and control of the awni
I am still stuck . I have no D+ to the psu
Any further suggestions on where to check next.
Thanks
My autocruise/Swift van is not fitted with a EM module either. The link to the cab electrics is at the point you have found at the bottom of the B pillar instead.
Are you able to confirm that there is voltage getting to pin 13 from the dash fuse F49 on the 15 way coach-builders socket at that location to enable relay operation .
Are you able to confirm that there is voltage getting to pin 13 from the dash fuse F49 on the 15 way coach-builders socket at that location to enable relay operation .
Subscribers do not see these advertisements
Last edited:
OP
OP
Adam b
Free Member

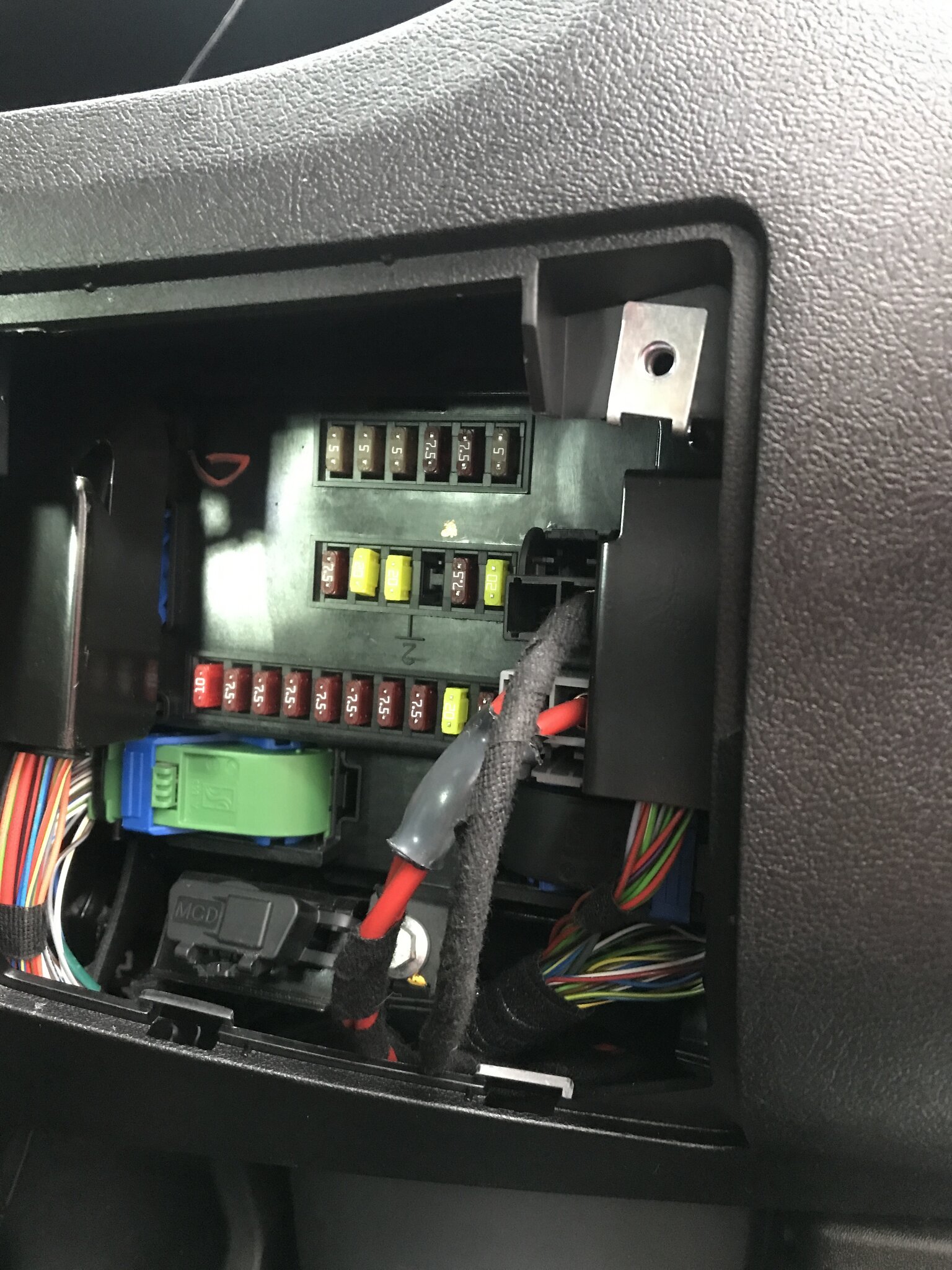

Can you tell me which one is f49 please
Attachments
OP
OP
Adam b
Free Member
I have no voltage to marked fuses
Attachments
Top row second from the left (5 amp) = F49 ( according to the fuses shown on page 3.11 in the converters manual ,)
Dont know if this would help about the D+, it wouldn't far from yours.
I have a different van but just in case…
I have a pair of piggyback fuses near the starter battery and another pair neat the leisure battery bank. They are a 50amp fuse and a 2amp fuse. On my van the 2amp fuse is used in the control side for various tasks along with a feed from D+. If the 2amp fuse blows a lot of my stuff that works with D+ fails, step included
I have a pair of piggyback fuses near the starter battery and another pair neat the leisure battery bank. They are a 50amp fuse and a 2amp fuse. On my van the 2amp fuse is used in the control side for various tasks along with a feed from D+. If the 2amp fuse blows a lot of my stuff that works with D+ fails, step included
Subscribers do not see these advertisements
OP
OP
Adam b
Free Member
OP
OP
Adam b
Free Member
.
OP
OP
Adam b
Free Member
Omnister
Search on this site for omnister if you haven’t already done so
I will have a look on another site I use as well
I seem to remember another thread somewhere relating to the relay with a blue and white wire , I will let you know
I will have a look on another site I use as well
I seem to remember another thread somewhere relating to the relay with a blue and white wire , I will let you know
