Instruction manual or info on CE RoHS Solar Charge Controller 12/24V (2 Viewers)

[PlacidoD]

I have instruction manuals on most things that came with my Hobby T500 van (albeit that many of them are in German!) but nothing on my solar charge controller and I am struggling to locate any sort of manual online. I have pressed the one button out of curiosity but only when on EHU when I suspect that the controller is not feeding anything into the leisure battery?

Can someone assist with a link to the manual or explain here in a couple of lines the on screen info I am getting and what pressing the button does?!!

P.S. In case it impacts on your answer I am on a bog standard set up of one solar panel of circa 100 watts plus one (new) 95Ah leisure flooded acid battery and considering fitting a 2nd identical battery before my next trip to Europe end of August. I have replaced most of the tungsten/halogen lighting with LEDs and will continue that process in the next few weeks so main consumption on the van is the fridge.

Thanks in advance for your replies!

Chris



[dunnah01]

It's probably based on the same electronics as an Ecoworthy PWM type controller. Pressing the red button a couple of times will give adjustment options.



[Two on Tour]

I have instruction manuals on most things that came with my Hobby T500 van (albeit that many of them are in German!) but nothing on my solar charge controller and I am struggling to locate any sort of manual online. I have pressed the one button out of curiosity but only when on EHU when I suspect that the controller is not feeding anything into the leisure battery?

Can someone assist with a link to the manual or explain here in a couple of lines the on screen info I am getting and what pressing the button does?!!

P.S. In case it impacts on your answer I am on a bog standard set up of one solar panel of circa 100 watts plus one (new) 95Ah leisure flooded acid battery and considering fitting a 2nd identical battery before my next trip to Europe end of August. I have replaced most of the tungsten/halogen lighting with LEDs and will continue that process in the next few weeks so main consumption on the van is the fridge.

Thanks in advance for your replies!

Chris

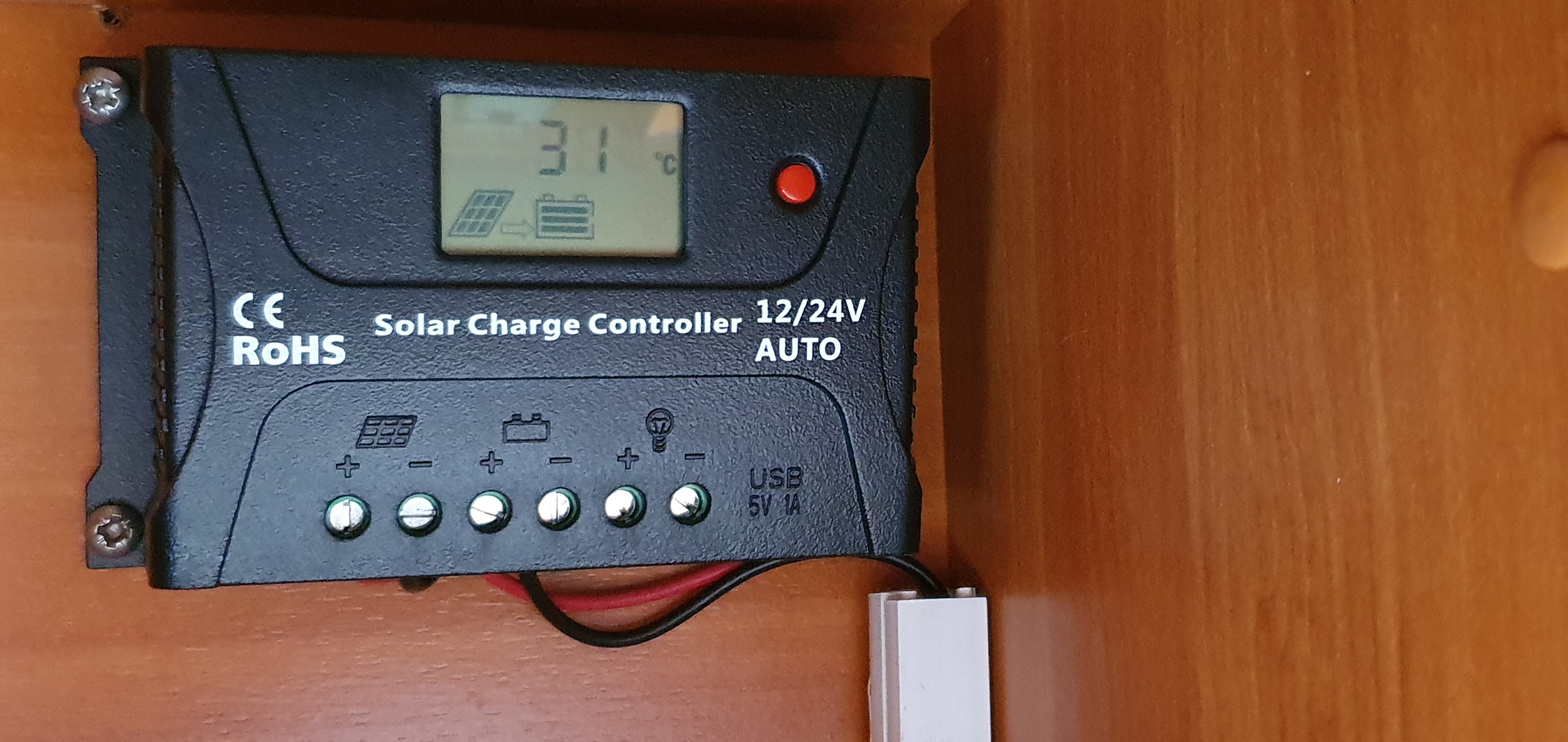

View attachment 929346

This is the one that you are looking for.

HP Series Smart Solar Charge Controller User Manual



[Jev88]

Want to check solar?
Put a multimeter on the cables from solar - should be over 17V DC.



[PlacidoD]

This is the one that you are looking for.

HP Series Smart Solar Charge Controller User Manual

Yes that is the one. Thank you!

Mind you I am not a lot the wiser having read it!!!
